PRODUCT DESCRIPTION:

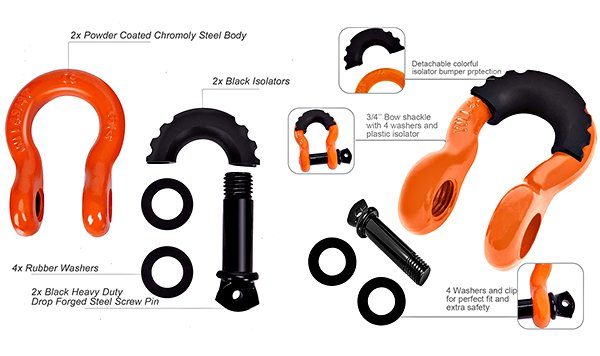

Screw pin anchor shackles offer the highest quality in the industry. Hot-dip galvanized for corrosion-resistance, the shackle is an almost essential salvage accessory. A shackle is used to attach rescue straps to vehicles.
• Material: Body Carbon Steel C1045(#45)/Pin Alloy Steel
• Surface: Electric Galvanized/Hot Dipped Galvanized
• W.L.L: From 1/2 Tons to 55 Tons
• Size: Various Shackle sizes available from 3/16″ to 2 1/2″
• Standard: U.S. Federal Specification RR-C-271D / ASME B30.26
• Safety Factor: 6:1 or 4:1
• Brand: Unbranded/OEM
• Application: Overhead Lifting, Lashing,towing

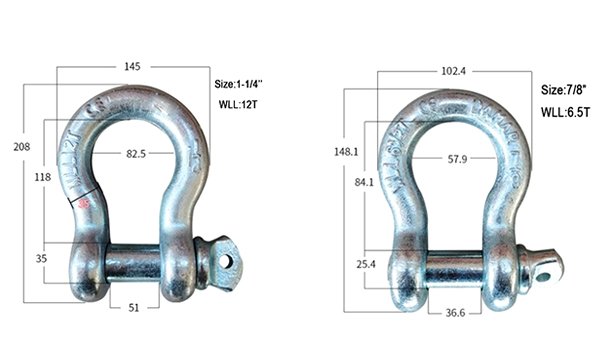

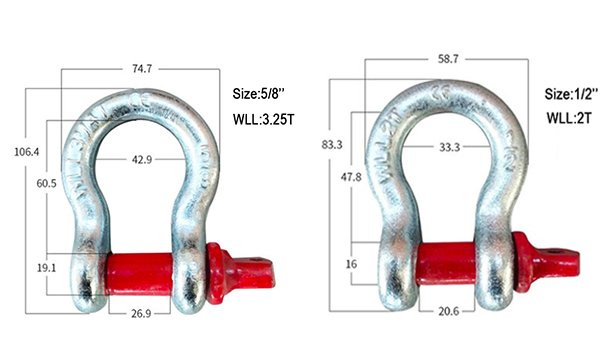

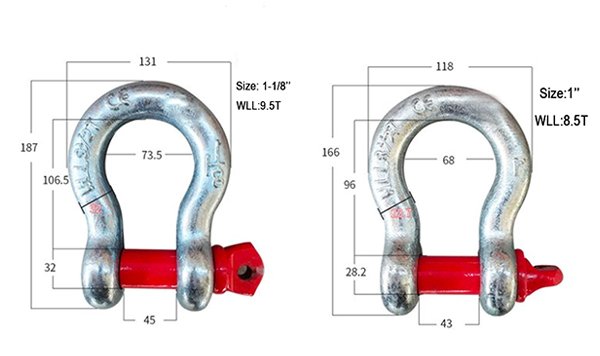

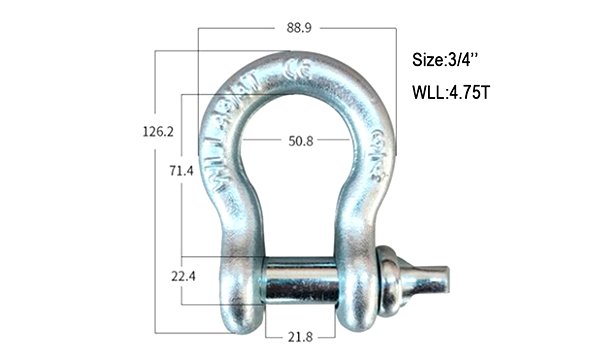

| Size (in.) | Working Load(t) | Weight(Ibs) | Dimensions(in.) | ||||||
| - | - | - | A | B | C | D | E | F | M |
| 3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 1.14 |
| 1/4 | 1/2 | 0.1 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.43 |
| 5/16 | 3/4 | 0.18 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.71 |
| 3/8 | 1 | 0.31 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.02 |
| 7/16 | 1-1/2 | 0.38 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.37 |
| 1/2 | 2 | 0.72 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.69 |
| 5/8 | 3-1/4 | 1.37 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 3.34 |
| 3/4 | 4-3/4 | 2.35 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.97 |
| 7/8 | 6-1/2 | 3.62 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.5 |
| 1 | 8-1/2 | 5.03 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 5.13 |
| 1-1/8 | 9-1/2 | 7.41 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.71 |
| 1-1/4 | 12 | 9.5 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 6.25 |
| 1-3/8 | 13-1/2 | 13.53 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.83 |
| 1-1/2 | 17 | 17.2 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 7.33 |
| 1-3/4 | 25 | 27.78 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 9.06 |
| 2 | 35 | 45 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 10.35 |
| 2-1/2 | 55 | 85.75 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 13 |
