Darter is one of the innovative leading manufacturers of forging hardware, trailer off road recovery kits, marine hardware, power line hardware, earthing and anchoring product, With 20 years of experience.
PRODUCT DESCRIPTION:
Bolt Type Anchor shackles with thin head bolt - nut with cotter pin, Hot Dip galvanised or self coloured,is excellent for long-term or permanent lashing application which may involve vibration. Wide Body is design for multi-directional load or pulls.
• Material: Body Carbon Steel C1045(#45)/Pin Alloy Steel
• Surface: Electric Galvanized/Hot Dipped Galvanized
• W.L.L: From 1/2 Tons to 55 Tons
• Size: Various Shackle sizes available from 3/16″ to 2 1/2″
• Standard: U.S. Federal Specification RR-C-271D / ASME B30.26
• Safety Factor: 6:1 or 4:1
• Brand: Unbranded/OEM
• Application: Overhead Lifting, Lashing, Towing

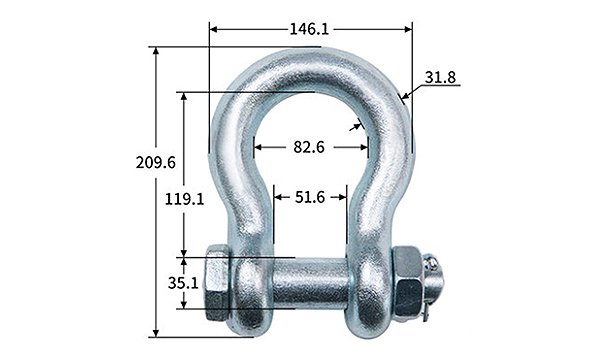

| Size | WLL ton | Amm | Bmm | Cmm | Dmm | Emm | Fmm | Hmm | Lmm | Pmm | N.W kg/pc |
| 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 83.3 | 58.7 | 71.1 | 0.6 |
| 5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 106.4 | 74.7 | 89.7 | 0.76 |
| 3/4 | 4.75 | 31.8 | 22.4 | 71.4 | 19.1 | 50.8 | 45 | 126.2 | 88.9 | 103.4 | 1.23 |
| 7/8 | 6.5 | 36.6 | 25.4 | 84.1 | 22.4 | 57.9 | 53.1 | 148.1 | 102.4 | 119.6 | 1.79 |
| 1 | 8.5 | 42.9 | 28.7 | 95.3 | 25.4 | 68.3 | 60.5 | 166.6 | 119.1 | 134.9 | 2.57 |
| 11/8 | 9.5 | 46 | 31.8 | 108 | 28.7 | 73.9 | 68.3 | 189.7 | 131.1 | 149.9 | 3.75 |
| 11/4 | 12 | 51.6 | 35.1 | 119.1 | 31.8 | 82.6 | 76.2 | 209.6 | 146.1 | 165.4 | 5.31 |
| 8/13 | 13.5 | 57.2 | 38.1 | 133.4 | 35.1 | 92.2 | 84.1 | 232.7 | 162.1 | 183.1 | 7.18 |
| 11/2 | 17 | 60.5 | 41.4 | 140.1 | 38.1 | 98.6 | 92.2 | 254 | 174.8 | 196.3 | 9.43 |
| 4/13 | 25 | 73.2 | 50.8 | 177.8 | 44.5 | 127 | 106.4 | 313.4 | 225 | 229.8 | 15.38 |
| 2 | 35 | 82.6 | 57.2 | 196.9 | 50.8 | 146.1 | 122.2 | 347.5 | 253.2 | 264.4 | 23.7 |
| 2/21 | 55 | 104.9 | 70 | 266.7 | 66.5 | 184.2 | 144.5 | 453.1 | 326.9 | 344.4 | 44.57 |
| 3 | 85 | 127 | 82.6 | 300.2 | 76.2 | 200.2 | 165.1 | 546.1 | 364.7 | 419.1 | 69.85 |
| 31/2 | 120 | 133.4 | 95.3 | 371.6 | 91.9 | 228.6 | 203.2 | 625.6 | 417.9 | 482.6 | 120.2 |
| 4 | 150 | 139.7 | 108 | 368.3 | 104.1 | 254 | 228.6 | 652.5 | 467.9 | 501.7 | 153.32 |
